MBR Hollow Fiber Membrane Bioreactor Sewage Treatment

Name: MBR Hollow Fiber Membrane Bioreactor Sewage Treatment
Brand: CNKHONG
Price: 14 USD

Quality MBR Hollow Fiber Membrane Bioreactor Sewage Treatment for sale

Brand Name : CNKHONG

Model Number : KH-MBR-35-Co-PVDF

Place of Origin : China

MOQ : 100M2

Price : USD14/M2

Payment Terms : L/C, T/T

Supply Ability : 1200M2/day

Delivery Time : within 10 days

Packaging Details : Carton box or Pallet

Material : Reinforced PVDF

OD/ID : 2.2/1.0mm

Size : 1800x1020x47mm

Flux Rate : 15-20LMH

Transmembrane Pressure : -0.08MPa

Temperature Scope : 1-40C

Contact Now

Pore Size 0.05um MBR Membrane Elements for Sludge Treatment with PVDF material

Product Description

The MBR membrane filtration device is composed of curtain membrane module, bottom aeration and stainless steel frame. The MBR membrane module has good anti-pollution ability and strong durability. At the same time, the oxidation resistance of PVDF material is also very strong. It can be cleaned with high concentration of oxidizing property, which is more conducive to the removal of pollutants. The lining coating technology improves the application strength of the membrane wire. The MBR membrane module adopts the method of producing water at both ends, which greatly improves the pollution resistance and operation stability of the module. The MBR membrane has a permanent hydrophilic property through special hydrophilic treatment. The anti-fouling performance of the membrane wire is improved while obtaining a higher water flow rate at a lower pressure.

Products Character
1. Strong resistance to contamination The reinforced PVDF membrane filaments have ultra-smooth surface characteristics and unique charge properties, and the inner and outer walls of the membrane filaments are not easily fouled, resulting in superb anti-pollutior
2. Easy to clean. easy to recover The unique outer dense layer structure of PVDF ultrafiltration membrane makes contaminants only stay on the outer surface of the membrane and do not enter the mesh of the membrane. The membrane is easy to clean and has good flux recovery performance 3.High flux The MBR curtain module uses hydrophilic PVDF ultrafiltration membrane filaments. and the R&D team has conducted several dry experiments to improve the hydrophilicity by optimising the process parameters for controlled Product character

Item/Model	KH-MBR-25-CO-PVDF	KH-MBR-30-CO-PVDF	KH-MBR-35-CO-PVDF
Membrane Area(M2)	25	30	35
Height	1560 mm	1810 mm	1810 mm
Width	1040 mm	1040 mm	1250 mm
Thickness	47 mm	47mm	35 mm
Dry Weight	20 kgs	25 kgs	30 kgs
Membrane material	Reinforced PVDF	Reinforced PVDF	Reinforced PVDF
Micro pore size	0.05μm	0.05μm	0.05μm
ID/OD of Membrane	0.9/2.2mm	0.9/2.2mm	0.9/2.2mm
Suspend solid	<5mg/L	<5mg/L	<5mg/L
Temperature	5-40℃	5-40℃	5-40℃
PH range	2~11	2~11	2~11
Flux for waste water	15~20 LMH	15~20 LMH	15~20 LMH
Operating Method	Sucking out 8 mins and staying 2 mins	Sucking out 8 mins and staying 2 mins	Sucking out 8 mins and staying 2 mins
Cleaning Chemicals	500-3000ppm Sodium Hypochlorite	500-3000ppm Sodium Hypochlorite	500-3000ppm Sodium hypochlorite

MBR Hollow Fiber Membrane Bioreactor Sewage Treatment

Product Tags:

hollow fiber membrane bioreactor 0.05um

MBR hollow fiber membrane bioreactor

1000MM bioreactor sewage treatment

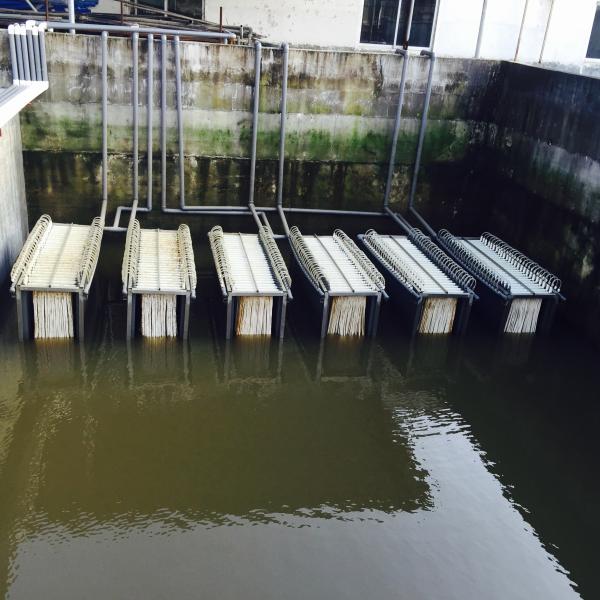

MBR Hollow Fiber Membrane Bioreactor Sewage Treatment Images
